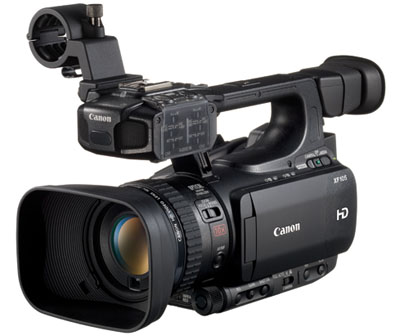

Canon XF 105 HD Video Camera
Product Description:
Features
- MPEG-2 4:2:2 50Mbps Codec (Canon XF Codec)
- Record to affordable Compact Flash Cards
- Major NLE Software Compatibility
- Genuine Canon 10x HD Video Lens
- Canon Native 1920 x 1080 CMOS Image Sensor
- Industry Standard HD-SDI Output, Genlock & SMPTE Time Code and Other Terminals
- Multiple Recording Bit Rates, Resolutions, and Variable Frame Rates
- Canon DIGIC DV III Image Processor
- Built-in 3-D Assist Features
- Infrared Recording
- Brilliant Ergonomics
- Large, 3.5-inch, 920,000 Dot LCD Monitor and EVF
- Exceptional Customization
Specifications
| SD or HD: | High Definition |
| Power Supply: | 7.4V DC (battery pack) |
| Video Recording system Compression: | MPEG-2 Long GOP |
| Movie Compression System: | MPEG-2 Long GOP 4:2:2 (50 Mbps) |
| Color Space: | 4:2:2 (at 50Mbps recording) |
| File Format: | MXF |
| Recording Modes: | 50Mbps (CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720 (60p/30p/24p) 35Mbps (VBR) 4:2:0, 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p) 25Mbps (CBR) 4:2:0, 1440x1080 (60i/30p/24p) |
| Audio Recording system: | 2-Channel, PCM digital recording, 16-Bit; 48kHz |
| Image Sensor: | 1/3-inch CMOS |
| Total Pixels: | Approx. 2.37 megapixels (2044 x 1160 pixels) |
| Effective Pixels: | Approx. 2.07 megapixels (1920 x 1080 pixels) |
| Maximum recording Time (64GB Compact Flash (CF) card): | 25Mbps: 310 minutes 35Mbps: 225 minutes 50Mbps: 160 minutes |
| Lens: | Canon 10x HD Zoom Lens, 4.25-42.5mm (35mm equivalent 30.4-304mm), f/1.8-2.8 |
| Focusing System: | TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual |
| Max Shutter Speed: | 1/2000 |
| Minimum Focusing Distance: | 20mm (wide macro), 60cm (entire zoom range) |
| White Balance: | Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten |
| Frame Rate: | 60i, 60p, 30p, 24p (50i and 25p optional upgrade) |
| Minimum Illumination: | Full AUTO mode: 4.5 lux (Shutter speed 1/60, Gain +24dB); Manual mode: 1.6 lux (shutter speed 1/4, Gain +33dB), (when 60i is selected) |
| Genlock Terminal: | BNC (input only) Same terminal as Time Code |
| HD/SD-SDI Terminal: | BNC (output only), with embedded audio and time code |
| Timecode Terminals: | BNC (input/output) Same terminal as Genlock |
| Image Stabilization: | SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off |
| Filter Diameter: | 58mm |
| Viewfinder: | 0.24-inch color widescreen, approx. 260,000 dots, approx. 100% field of view |
| LCD Screen: | 3.5-inch color widescreen LCD, approx. 920,000 dots, approx. 100% field of view |
| Microphone: | Stereo electrect condenser microphone |
| Recording Media: | CF Card : 2 Slots, Movie files only SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings |
| USB Terminal: | Mini-B USB 2.0 Hi-Speed |
| Video Terminal: | Component: Output only Composite: A/V terminal 3.5mm mini-jack, output only |
| Audio Terminal: | XLR 3-pin jack (2), Switchable between MIC/LINE, 3.5mm stereo mini-jack |
| HDMI Terminal: | Yes - Type A |
| AV Mini Terminal/Headphone Terminal: | 3.5mm stereo mini-jack |
| Remote Control Terminal: | Yes - compatible with LANC protocol |
| Operating Temperature range: | 0° - 40°C, 32° - 104°F, 85% relative humidity |
| Dimensions: | 4.8 x 5.8 x 9.8 in. (121 x 148 x 250mm) (not including lens hood, mic holder unit, grip strap) |
