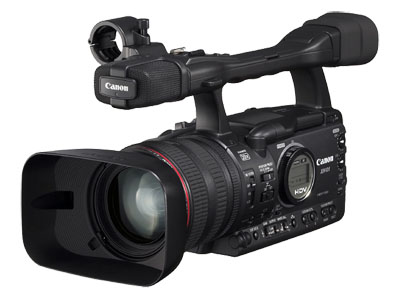

Canon XH G1 Video Camera
Product Description:
Building on the image quality of the award winning XL H1 model, the XH G1 High Definition video camera features three 1/3 inch native 16:9 1440 x 1080 CCDs with pixel shift technology to capture HD video at 1080i resolution. The genuine Canon 20x zoom Fluorite and UD lens with 'Super Range Optical Image Stabiliser' and 'Instant AF' autofocus is developed specifically for the optical demands of High Definition capture. Meanwhile, the Canon DiG!C DVII processor takes care of the huge data processing requirements that HD shooting demands
Features
- True 1080 High Definition image capture in 50i or 25F frame rates.
- Genuine Canon High Definition 'L Series' 20x Video Lens with 'Super Range Optical Image Stabiliser', 'Instant AF' autofocus and manual Iris ring control.
- 3CCD imaging sensor system incorporating 3 x 1/3" 1.67 Megapixel CCDs.
- Canon DiGIC DV II processor developed specifically for high definition.
- Ergonomic and compact design with fold-away LCD screen and recessed battery compartment.
- 2 channel XLR audio input with adjustable 'levels' control.
- Professional 'Jackpack' functionality with Genlock synchronisation, Timecode input/output, and HD-SDI with embedded audio.
- Customisable image control and handling characteristics.
- Optional 'Canon Console Version 1.1' software and upgrade to 60i, 30F or 24F frame modes.
Specifications
| Image sensing device: | |
| Image size: | 1/3-inch CCD |
| System: | 3-CCD horizontal pixel shift |
| Total pixels: | 1.67 megapixels per CCD |
| Number of effective pixels (per CCD): | HD: Approx. 1.56 megapixels SD/4:3: Approx. 1.17 megapixels SD/16:9: Approx. 1.56 megapixels |
| Lens: | |
| Optical Zoom magnification : | 20x HD Video Lens |
| Focal Length: | 4.5 – 90mm |
| F number: | f/1.6 - 3.5 |
| Aperture leaves (Number of leaves) : | 6 leaves, iris diaphragm |
| Zoom speed : | Handle zoom: Fixed speed (16 speed level settings available) Grip zoom: Variable speed/Fixed speed (16 speed level settings available) |
| Iris ring: | Provided (electronic ring). Focal length indicator, zoom limit provided. Manual zoom/Power zoom. |
| Zoom Rocker: | One of three settings (Slow, Normal or Fast) can be selected for the power zoom mode and, in each mode, either a variable speed (16 steps) or fixed speed (16 steps) can be set. |
| Iris Ring : | Yes (electronic ring) |
| Filter diameter: | 72mm |
| Minimum illumination: | Auto mode (when 50i is selected): Approx. 5 lux (shutter speed 1/50,Gain 18dB) Manual mode GAIN 18 dB, f1.6, 50i is selected: Approx. 0.3 lux (shutter speed 1/3) |
| Image Stabilizer: | Image stabilisation system: Optical Image Stabilisation (Shift-type) Sensing method: Angle detection and movement vector detection |
| Shooting functions | |
| AE mode | Auto mode, Tv mode, Av mode, Manual mode, Spotlight mode, Night mode, Full Auto mode |
| Metering System (TAPE) | Centre weighted average: Full Auto mode, Auto mode, Night mode, Tv mode, Av mode and Manual mode Evaluative metering (128-segments): Spotlight mode |
| Metering System (CARD) | Selectable from center-weighted average/evaluative/spot: Auto, Tv, Av, Manual Evaluative metering (128-segments): Night, Spotlight, Full Auto mode |
| Camera | |
| Exposure adjustment: | AE lock: Included. EXP. LOCK button operation (Auto mode, TV mode, Av mode only) AE shift: Included. MENU operation (±2 levels) (Auto mode, TV mode, AV mode only) Gain setting: Auto/Gain select (–3, ±0, +3, +6, +12, +18, +36dB) Set to Auto in Full Auto and Night mode, Spotlight mode is fixed at 0 dB. |
| Frame rate setting: | 50i, 25F recording |
| Shutter speed setting: | In Auto mode: 50i - 1/50 to 1/500 sec In Auto mode: 25F - 1/25 to 1/500 sec Night mode: 50i - 1/3 to 1/500 sec Night mode: 25F - 1/3 to 1/500 sec |
| Aperture value (HD 20x zoom ): | f/1.6, 1.8, 2.0, 2.2, 2.4, 2.6, 2.8, 3.2, 3.43.7, 4.0, 4.4, 4.8, 5.2, 5.6, 6.2, 6.7, 7.3, 8.0, 9.5, CLOSE |
| Auxiliary light source | External flash support: EOS flash unit supported External video light: Battery Video Light VL-10Li/L-10Li II |
| Image quality adjustment: | Skin setting: The skin detail setting can be made after making the hue adjustment, chroma adjustment, area adjustment, and Y level adjustment. Sky detail setting: (ON/OFF) Custom preset : Gamma adjustment, knee adjustment, black adjustment, master pedestal adjustment, setup level adjustment, sharpness adjustment, H detail adjustment, H/V balance adjustment, coring adjustment, NR (1/2) adjustment, colour matrix adjustment, colour gain adjustment, hue adjustment, RGB gain independent adjustment, matrix adjustment (6-axis adjustment) |
| White balance: | Auto: Yes Preset/Set: Outdoor (5600 K), Indoor (3200 K), Set (2 available), Colour temperature setting System: TTL, 128 segments |
| Focus: | Mode: AF/ MF/ One-push AF, Super Quick AF (Instant AF), Normal AF MF operation: Focus ring operation (with distance display function) |
| Time code: | Countup system: Rec Run, Free Run, Rec Run Preset, Hold Start value setting: “00:00:00:00”, Set, Reset selectable |
| Still image recording: | Yes |
| Zebra pattern: | Yes (Level adjustment: selectable from 70%, 75%, 80%, 85%, 90%, 95%, and 100%) |
| Colour bars: | Yes (2 types built-in) |
| Clear scan: | Yes |
| Memory card: | Yes |
| REC review: | Yes |
| Standby switch: | Yes |
| Power save: | Yes (after recording is paused for 5 minutes) |
| Audio: | |
| DV recording: | 16-bit 2ch (48 kHz), 12-bit 4ch (32 kHz). 4 channel synchronous recording is not possibleHDV recording: 2ch recording/MPEG1 Audio layer II |
| Wind screen: | Yes (ON/OFF) |
| LCD monitor | |
| Size: | 2.8-inch (Wide type) |
| Pixels: | 207,000 pixels |
| Image quality adjustment: | Yes (Brightness, Contrast, Colour, Sharpness, Backlight adjustment, Black and White supported) |
| Movable: | Yes. Front and back, and side to side adjustment |
| VCR | |
| Playback system | Frame playback: DV recording: Forward/Reverse, HDV recording: Forward only Slow playback (±1/3, ±1/10x speed): DV recording: Forward/Reverse, HDV recording: Forward only 2x speed playback: DV recording: Forward/Reverse, HDV recording: Forward/Reverse (Speed: 1x) 1x speed playback: DV/HDV recording: Forward/Reverse Cue/Review: DV recording: 11.5x speed, HDV recording: 8x speed |
| Search: | Date search: Yes Index search: Yes End search: Yes |
| Data code display: | Date and time display, Shooting data |
| Zero set memory: | Yes |
| System | |
| Microphone input jack | Microphone jack (with 5 V DC jack), XLR microphone jack (phantom power supply supported: 2 systems) |
| Headphone output: | 3.5 mm mini jack |
| HDV/DV terminal: | Input/Output |
| Video jacks: | BNC jack (input/output), HD/SD-SDI jack (output only. Audio and timecode embeded), Component jack (output only) |
| AV terminal: | AV mini-terminal (input/output) |
| Editing jack: | LANC |
| Time code jack: | Input, output: 1 system each |
| Genlock terminal: | Yes (Input only) |
| Memory card terminal: | Yes |
| Analogue signal to DV signal conversion: | Yes |
| EVF jack: | - |
| Microphone attenuation: | Yes (Built-in/microphones connected to the front microphone or rear XLR jacks) |
| Camera | |
| Microphone level meter: | Yes |
| World clock: | Yes |
| Tally lamp: | Yes |
| Remote control sensor: | Yes |
| Accessory shoe: | Supporting EOS flash/Battery video light |
| Custom key: | Yes - 2 available |
| DV control: | Yes |
| Backup power supply: | Built-in Lithium coin battery |
| Battery pack power: | BP-930, BP-945, BP-950G, BP-970G lithium-ion battery |
