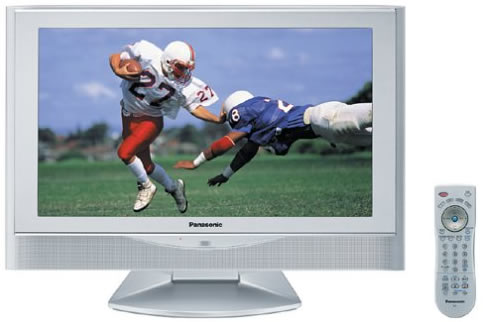

Panasonic TC-22LH1

Operating manual

Features

Panasonic TC-22LH1

Specifications

Screen size:22 inches
TV type:LCD
HDTV capable:Yes (EDTV, up to 480p)
Aspect ratio:16:9
Pixel controller:Yes
Speaker wattage per channel:5.5
Number of speakers:2 (2-way each)
Comb filter:Yes (digital, Motion-Adaptive 3D-Y/C)
Signal type:NTSC, decoded ATSC (480p/720p/1080i)
Closed captioning:Yes
Input labeling:Yes (with presets)
Auto channel scan:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Picture enhancements:Horizontal/Vertical Edge Correction, video noise reduction, LCD Artificial Intelligence, Active Light Control, Active System Control
Remote control:Yes
SAP:Yes
Sleep timer:Yes
Surround sound:Yes (simulated)
Hammer Drive sound system:Yes
Audio tone controls:Yes (bass/treble)
Audio balance:Yes
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA
Audio inputs:2 stereo analog (left/right) RCA
Video outputs:0
Video inputs:6
Headphone jack:Yes
Digital video input:1 (HDMI, backwards-compatible with DVI-HDCP devices using a special cable adapter)
Component video:2
Composite video:2
S-video:2
RF:1
Pixels:1,280 x 720
Contrast ratio:500:1
Brightness:450 cd/m2
Response time:16 ms
Horizontal viewing angle:170 degrees
Front AV jacks:No
Energy Star compliant:Yes
Width:35.8 inches
Height:23 inches (with stand)
Depth:10.7 inches (with stand)
Weight:23.2 pounds
In the box:LCD TV, remote control, remote battery, TV stand, user's manual, and warranty information
