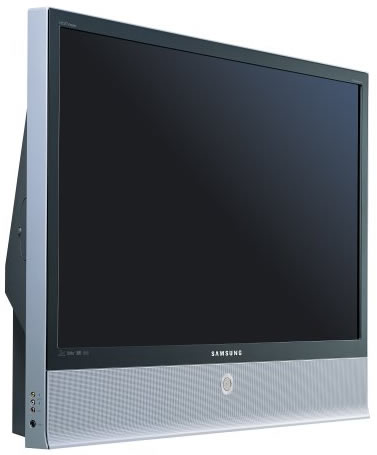

Samsung HL-P5063W
Features
- 50-inch HD-ready DLP projection television with 2 digital-video inputs; 46.5 x 34.3 x 14.1 inches (W x H x D)
- Compatible with 480i, 480p, and full high-definition 720p and 1080i signals; offers 1,280 x 720 native pixel resolution
- No risk of screen aging or burn-in effects; offers all-input upconversion, 3:2 pulldown reversal, and other enhancements
- 15-watts-per-channel x 2 stereo audio system with SRS TruSurround XT simulated surround sound
- 2 HD component-video inputs, 3 each composite- and S-video inputs, 2 RF inputs; 1 RF and 1 composite-video output
Specifications
| Screen size: | 50 inches |
| TV type: | DLP projection with an HD ultra-fine-pitch screen |
| HDTV capable: | Yes |
| Aspect ratio: | 16:9 |
| 3:2 pulldown detection: | Yes (Cinema Smooth mode) |
| Color wheel: | 7-segment, 10,800 rpm |
| Display device: | A single 0.55-inch Digital Micro-Mirror (DMM) device |
| Speaker wattage per channel: | 15 watts x 2 |
| Number of speakers: | 2 (2-way each) |
| Comb filter: | 3D Y/C |
| Line doubling: | Yes (all-format upconversion to 1,280 x 720) |
| Signal type: | NTSC, ATSC (480p, 720p, 1080i) |
| Picture enhancements: | Digital Natural Image engine (DNIe) |
| Picture modes: | Film mode (powered by Genesis microchip); standard, cinema, and dynamic |
| Last-channel recall: | Yes |
| Multilingual menu: | English, Spanish, French |
| Parental control: | V-Chip |
| Picture-in-picture (PIP): | 2-tuner, split-screen |
| Remote control: | Universal |
| Discrete IR codes: | Yes (for use with a macro/programmable remote control) |
| Surround sound: | SRS TruSurround XT |
| VGA/SVGA input: | 1 (15-pin D-Sub) |
| Audio outputs: | 1 stereo analog (left/right) RCA |
| Audio inputs: | 7 stereo analog (left/right) RCA |
| Video outputs: | 1 RF, 1 composite-video |
| Video inputs: | 13 |
| Digital video input: | 2 (1 DVI, 1 HDMI) |
| Component video: | 2 (HD/SD) |
| Composite video: | 3 |
| S-video: | 3 |
| RF: | 2 |
| Pixels: | 1,280 x 720 |
| Contrast ratio: | 1,500:1 |
| Dot pitch: | .155 mm |
| Lamp life: | 5,000 to 8,000 hours |
| Color temperature control: | Yes |
| Front AV jacks: | No |
| Side AV jacks: | Yes |
| Wall mountable: | Yes |
| Acoustics: | 48 dB (30 percent quieter than conventional sets) |
| Power supply: | AC 120V, 60 Hz |
| Optional accessories: | Stand: TR50L3S |
| UPC: | 036725243743 |
| Width: | 46.5 inches |
| Height: | 34.3 inches |
| Depth: | 14.1 inches |
| Weight: | 77.2 pounds |
| Shipping dimensions: | 51.2 x 39.8 x 18.9 inches (W x H x D) |
| Shipping weight: | 94.8 pounds |
| In the box: | TV, remote control, remote batteries, a user's manual, and warranty information |
