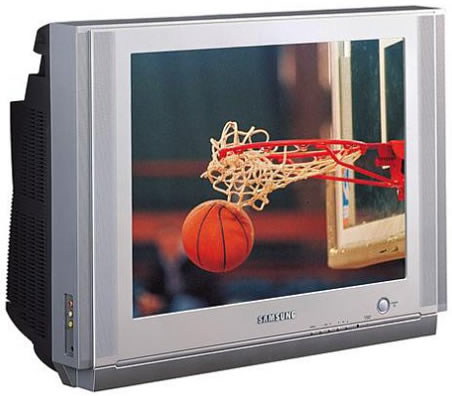

Samsung TXN1634F

Operating manual

Features

Samsung TXN1634F

Specifications

In the box:TV, remote control, remote batteries, user's manual
Screen size:16 inches
TV type:CRT with DynaFlat anti-distortion, anti-glare, dark-tint picture tube
HDTV capable:No
Aspect ratio:4:3
Aspect-ratio control:Normal and zoom (screen-filling) modes
Speaker wattage per channel:2.5 watts
Number of speakers:2 (stereo)
Comb filter:Yes (digital)
Horizontal resolution:500 lines (maximum)
Invar shadow mask:Yes
3:2 pulldown:No
Signal type:NTSC
Auto channel setup:Yes
Channel labeling:No
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Closed captioning:Yes (CaptionVision)
Picture modes:Standard, Natural, Mild, Custom, with user adjustable brightness, contrast, sharpness, color, and tint
Self-diagnostic mode:Yes
Non-volatile memory:Yes (preserves settings in the event of a power outage)
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes (full-function)
SAP:Yes
Sleep timer:Yes
Remote surf timer:Yes (returns TV to original channel after a fixed time so other channels can be browsed during commercial breaks)
Audio tone controls:Turbo Sound boosts high and low frequencies
Sound enhancement modes:Standard, Movie, Music, and Speech
Surround sound:No
VGA/SVGA input:No
Audio outputs:0
Audio inputs:2 stereo analog left/right RCA (1 side, 1 rear)
Video outputs:0
Video inputs:3
Headphone jack:Yes (monaural, .125-inch)
DVI-HDTV:0
Component video:1 (480i)
Composite video:2
S-video:0
RF:1
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Sound leveler system:Yes
Antenna:CATV/VHF/UHF 75-ohm, F-type
Power supply:120W AC, 60Hz
Power consumption:75 watts (2.7 watts standby)
Energy Star compliant:Yes
UPC:036725216921
Length:16.5 inches
Width:19.5 inches
Height:15.1 inches
Weight:32.2 pounds
