Samsung TX-N2670WHF

Operating manual

Features

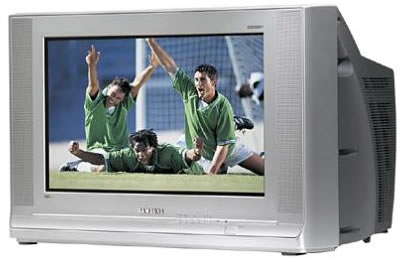

Samsung TX-N2670WHF

Specifications

Screen size:26 inches
TV type:CRT with DynaFlat screen and dark-tint picture tube
HDTV capable:Yes
Aspect ratio:16:9
Aspect-ratio control:Normal and zoom (screen-filling) modes
Speaker wattage per channel:15
Number of speakers:2 (side-mounted)
Comb filter:3-line digital
Electron gun:Dynamic, multiple-focus
Horizontal resolution:800 lines (maximum)
Invar shadow mask:Yes
Scan velocity modulation:Yes
3:2 pulldown:Yes
Noise reduction:Yes
Signal type:NTSC, decoded ATSC (480p/1080i)
Black-level expansion:Yes
White peak limiter:Yes
Auto channel setup:Yes
Auto clock set:Yes (reads XDS broadcast data)
Channel labeling:Yes
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Closed captioning:Yes (CaptionVision)
Picture modes:Standard/Dynamic/Movie/Custom (with user-adjustable brightness, contrast, sharpness, color, and tint)
Picture enhancements:Pro Picture 3-Stage Video Correction; Vertical Compression (maintains vertical resolution and quality during anamorphic widescreen sources such as DVD)
Screen capture picture freezing:Yes
Self-diagnostic mode:Yes
Auto Kine Aging Bias:Yes (automatically regulates the white balance to maintain consistent, optimal performance even after many years of use)
Nonvolatile memory:Yes (preserves settings in the event of a power outage)
Tilt correction:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Translucent OSD:Yes
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes (universal)
SAP:Yes
Sleep timer:Yes
On timer:Yes
Remote Surf timer:Yes (returns TV to original channel after a fixed time so other channels can be browsed during commercial breaks)
Audio tone controls:5-band graphic equalizer
Sound enhancement modes:Standard, Movie, Music, Speech, and Custom
Surround sound:Yes (simulated)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right RCA, fixed-level)
Audio inputs:3 stereo analog (left/right)
Video outputs:1 (composite-video)
Video inputs:5
Headphone jack:Yes (.125-inch, side panel)
DVI-HDTV:0
Component video:2 (both auto-sensing 480p/480i/1080i)
Composite video:4
S-video:1
RF:1
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Sound leveler system:Yes
Antenna:CATV/VHF/UHF 75-ohm, F-type
Power supply:120W AC, 60 Hz
Power consumption:200 watts (1.9 watts standby)
Energy Star compliant:Yes
UPC:036725226708
Width:31.5 inches
Height:19.9 inches
Depth:21.8 inches
Weight:89.1 pounds
Shipping dimensions:35.8 x 25 x 26.2 inches
Shipping weight:100.3 pounds
In the box:TV, remote control, remote batteries, user's manual
