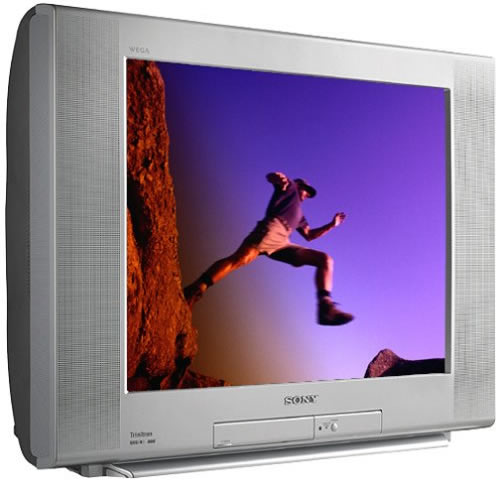

Sony KV-24FS120

Operating manual

Features

Sony KV-24FS120

Specifications

Screen size:24 inches
TV type:CRT with FD Trinitron picture tube
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:10
Number of speakers:2
Includes radio:No
Comb filter:Digital
Invar shadow mask:No
Scan velocity modulation:No
Auto white balance:Yes
Line doubling:No
3:2 pulldown:No
Noise reduction:No
Apacon:No
Includes DVD player:No
Includes VCR:No
Signal type:NTSC
Protective screen guard:No
Auto channel setup:Yes
Channel fix:Yes
Channel labeling:Yes
Input labeling:Yes
Closed captioning:Yes
XDS (Extended Data Service) banner:Yes
Mute:Yes
Surfing:Speed Surf channel selection
Picture enhancements:Vertical Aperture Compensation; vertical compression, tilt correction, Dynamic Picture Processor circuitry, auto white balance
Picture presets:Vivid/Standard/Movie/Sports
Favorite channel:Yes
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Front-panel menu access:Yes (remote not required for use)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes
Sleep timer:Yes
Clock/timer:Yes (2-event)
VGA/SVGA input:0
Audio outputs:0
Audio inputs:5 stereo analog (left/right) RCA
Video outputs:0
Video inputs:7
Headphone jack:Yes (.125-inch)
Digital-video input:0
Component video:1
Composite video:2
S-video:1
RF:1
Monitor:No (includes 181-channel NTSC tuner)
Color temperature control:Yes (Trinitone)
Surround sound:Matrix
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:No
Auto pedestal clamp:Yes
Power supply:AC 120V, 60 Hz
Power consumption:In operation
Energy Star compliant:Yes
UPC:0272426417850
Width:28.125 inches
Height:20.75 inches
Depth:18.875 inches
Weight:72 pounds
