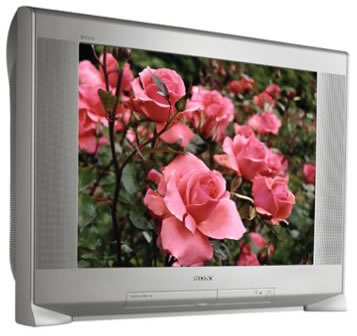

Sony KV-32HS420

Operating manual

Features

Sony KV-32HS420

Specifications

Screen size:32 inches
TV type:CRT with flat FD Trinitron tube
HDTV capable:Yes
Aspect ratio:4:3
Speaker wattage per channel:10
Number of speakers:2 (selectable on/off)
Flash-memory port:No
Includes radio:No
Comb filter:3D digital
Auto white balance:Yes
Scan velocity modulation:Yes (Clear Edge VM wideband velocity modulation)
Line doubling:Yes (720p to 1080i upconversion using Hi-Scan technology)
3:2 pulldown detection:Yes (CineMotion Reverse 3-2 Pulldown Technology)
Signal type:NTSC, decoded ATSC (DTV receiver not included)
Protective screen guard:No
Black-level expansion:No
Auto channel setup:Yes
Channel labeling:Yes
Input labeling:Yes
Channel fix:Yes
Closed captioning:Yes
Mute:Yes
Surfing:Speed Surf channel selection, Scrolling Channel Index system
Picture freeze:Yes
Picture modes:Program Palette (Vivid/Movie/Standard/Sports) presets
Picture enhancements:DRC Digital Reality Creation MultiFunction Circuitry (displays 4 times the picture resolution relative to conventional sets), high-voltage regulator (maintains consistent image size, despite variations in brightness during scene changes and channel changes), Dynamic Focus circuitry (automatically adjusts the picture during each scanning line for consistent corner-to-corner sharpness), magnetic quadra-pole technology (reduces "beam spot" distortion and improves corner-to-corner focus and picture sharpness), Vertical Aperture Compensation, Vertical Center Adjustment, Tilt Correction, Vertical Correction, Vertical Size Adjustment
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes
SAP:Yes (auto SAP)
Auto clock set:Information not available
Sleep timer:Yes (and 2-event on-timer)
Audio tone controls:BBE Sound
Audio balance:Yes
Surround sound:TruSurround SRS audio (simulated surround)
VGA/SVGA input:0
Audio outputs:2 stereo analog (left/right) RCA
Audio inputs:7 stereo analog (left/right) RCA
Video outputs:1 (composite-video)
Video inputs:11
Headphone jack:No
Digital video input:1 (HDMI with HDCP content protection)
Component video:2
Composite video:4
S-video:3
RF:1
Control port:1 (Control S)
Monitor:No (includes 181-channel NTSC tuner)
Color temperature control:Yes (Trinitone settings)
Front AV jacks:Yes
Side AV jacks:No
Sound leveler system:Yes (SteadySound)
Power supply:AC 120V, 60 Hz
Power consumption: 240 watts (standby: less than 1 watt)
Auto pedestal clamp:Yes
Energy Star compliant:Yes
UPC:0272426452710
Width:35.375 inches
Height:27.5 inches
Depth:23.5 inches
Weight:168.19 pounds
